HIGH LIFTING HAND PALLET TRUCK
Model - DH-8/10

Capacity: 800/1000 kg



Send an enquiry      Download e-brochure

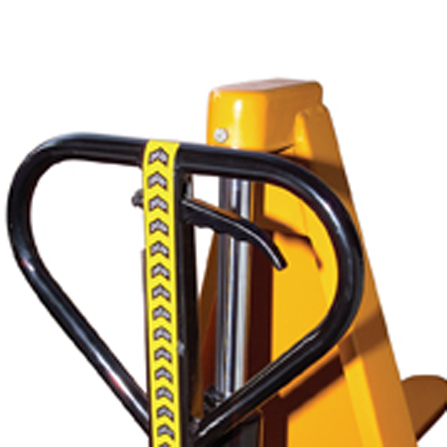

  • HANDLE

    Drawbar with finger protection clamp and release handle

  • PARKING BRAKE

    Foot operated parking brake is available as an option

  • STABILIZERS

    Side stabilizers in operation

  • Silent in operation
  • Easy to operate
  • Light and manoeuvrable
  • Minimum maintenance
  • Economical
  • Compact
  • Versatile

Capacity
  • 800 kg / 1000 kg
  • DH 8 / 10 Normal Lift
  • DH 8 / 10 Quick Lifts for loads upto 150 kg.
Fork dimension

480 & 560 x 1200mm Available in corrosion resistant version(Stainless steel or Galvanized )

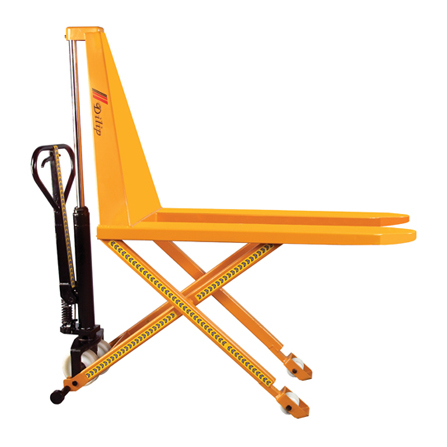

DH - 8 is a special pallet truck which combines the advantage of the hand pallet truck and the adjustable worktable. The forks of the pallet truck can be rapidly and easily lifted by means of the hydraulic pump which is operated with the drawbar.

The quality and reliability of DH-8 is very high because....

DILIP offers ...

  • Hard chromed, polished pistons that are resistant to rust, scracthes and wear.
  • Double sealed high pressure polyurethane packing.
  • To ensure long life of the hydraulic system.
  • To prevent leakages.
  • Ergonomically designed steering handle.
  • For easy operation from all angles.
  • To reduce pulling power and minimise operator fatigue.
  • Light and compact construction
  • Safety

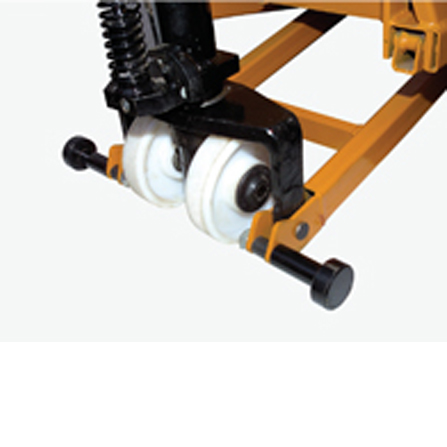

DH-8 is equipped with adjustable side stabilizers. At 350mm they lift steering wheels above the floor.

This ensures that the equipment remains stationery when being used as a worktable.

Specification
Load Weight : 800 kg
Lifting Height : 800mm
Lifting capacity : 14mm/stroke
Weight : 122 kg
Wheels : 2 nylon Wheels Ø 180 x50mm
: 2 nylon wheels Ø 80 x 70mm
And of course...

DILIP also offers tailor-made versions for specific requirements such as galvanized version for cold store applications.
