• Silent in operation
• Easy to operate
• Light and manoeuvrable
• Minimum maintenance
• Economical
• Compact
• Versatile

DILIP Stackers - an indispensable auxiliary for all types of enterprises.

DS - 5/8/15 are extremely versatile manually operated stackers. They are very useful for loading, Unloading and Stacking operations. With a detachable platform on the fork they can also be used as an adjustable worktable.

The quality and reliability of these stackers are very high because...

DILIP offers ...

• Hard chromed, polished pistons that are resistant to rust, scratches and wear
• Double sealed high pressure polyurethane packing
• To ensure long life of the hydraulic system
• To prevent leakages
• Ergonomically designed steering handle
• For easy operation from all angles
• To reduce pulling power and minimise operator fatigue.
• Light and compact construction

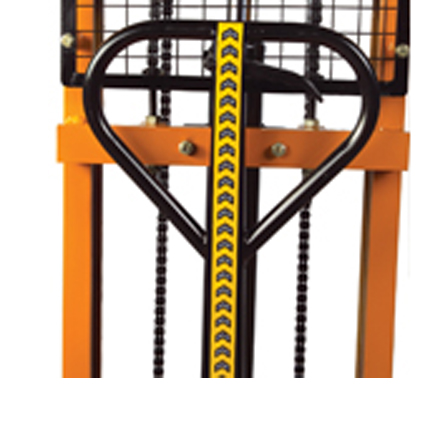

Mast:

Made of quality steel bent in C profiles. Inner and outer mast furnished with thrust rollers to prevent lateral play.

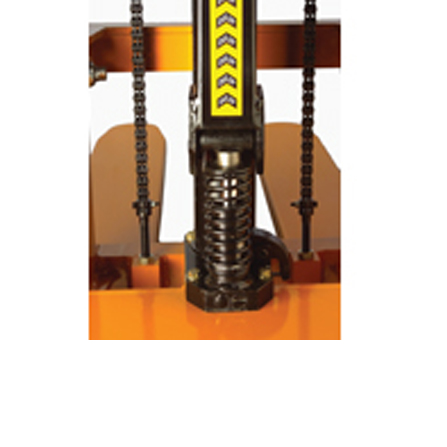

Carriage:

The carriage has an open centre section and low profiled forks with inner reinforcement.

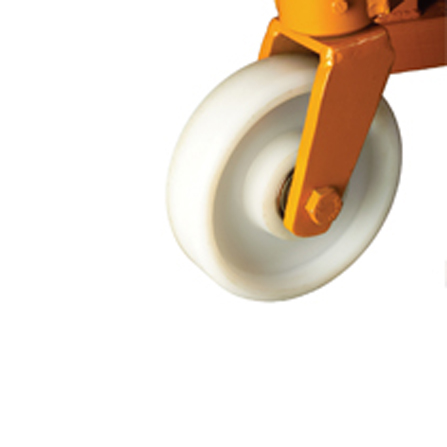

Wheels

Steering and support wheels :

• 2 Nylon wheels Ø 180 x 50mm
Load wheels:
• 4 Nylon wheels Ø 80 x 70mm

---

---
